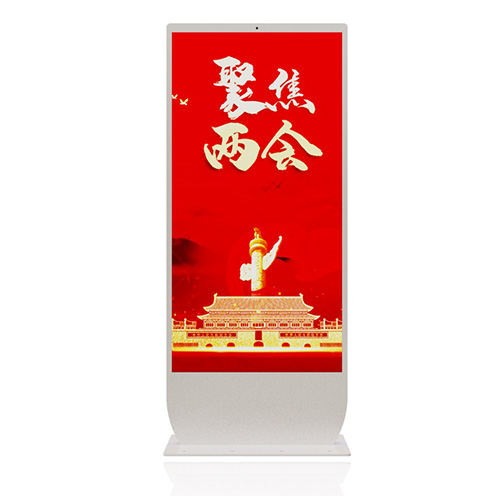

TL256-106 Inch Single Sided Floor Standing LED Totem

Pixel Pitch : 2.56mm

Luminance Level : ≥7000 CD/m2

Display Size : 1200mm x 2400mm

Resolution : 468 x 937 dots

Appearance Size : 1280mm x 3000mm x 160mm

Refresh Frequency : 4096Hz

Weight : 180 KG

Power Consumption : 1000W(Averagely)

Temperature Control System : Intelligent Air Cooling

Frame Material : Aluminum

Input Voltage : AC110-230V 50/60Hz

Waterproof Level : IP65

Viewing Distance : >3m

Supporting Signal input type : VGA, DVI, HDMI, HD_SDI

  • Product Details

TL256-106LED Totem is the ideal medium to communicate with passerby in a dynamic and flexible way. Specially designed for applications like transportation hub, traffic intersection, crossover, park and unban community. With a large display area of 6m², these totems provide impactful viewing effect to passengers and commuters at a daily base thanks to P2.56 and P3.84 pixel pitches.

LED Totem for high-speed rail station has a great application for information, user guides, maps, and advertising.

The flexibility of LED means that content can be updated easily, and the stable signal works for high-speed rail station with high traffic

The advantages of water protection plate on the top of TL256-106 cabinet are as follows:

• Made of stainless steel with poor adhesion.Prevent the bird’s excrement from staying and corroding the surface of the cabinet.

•Greatly improve the waterproof effect.

•In fact, when the rainwater enters the inside of the cabinet, it will cause great damage to the LED Totem, which will not only affect the quality of the screen image, but also affect the normal operation of the circuit board because the water vapor adheres to the internal precision components, thus directly affecting the operation of the circuit board. As a result, the service life of the LED Totem is greatly shortened.

•Therefore, the LED Totem not only needs to design a professional waterproof structure to increase the sealing of the cabinet, but also add a water protection plate on the top without affecting the appearance, so that not only can prevent water vapor and rain from penetrating into the screen , and even improve the overall waterproof performance of the LED Totem to a certain level.

Installation method

Design a suitable way.

•To provide a best solutions of installation way to our customer, we need to know the situation on the installation site as much as possible. We need to be informed the installation method before designing the product. We need to know the pole diameter(round pole or square pole), which side to open the door and which side for the cables to get out.

•We also need to know normally what is the normal wind force at local area as we need to determine the bracket strength.

•When all these questions are answered, we will be able to design a perfect installation way for every single project.
