Large LED Totem/

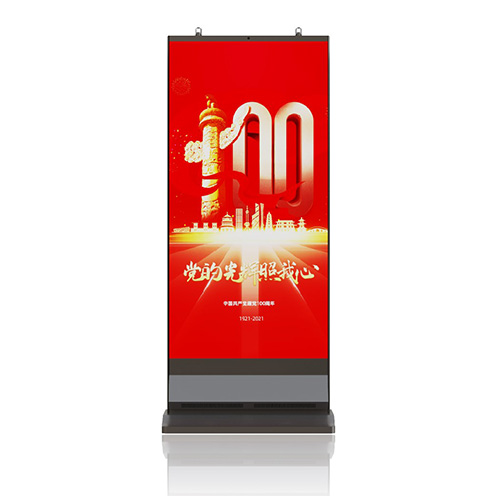

TL256-123 Inch Single Sided Floor Standing LED Totem

Pixel Pitch : 2.56mm

Luminance Level : ≥7000 CD/m2

Display Size : 1400mm x 2800mm

Resolution : 546 x 1093 dots

Appearance Size : 1402mm x 3465mm x 150mm

Refresh Frequency : 4096Hz

Weight : 200 KG

Power Consumption : 1500W(Averagely)

Temperature Control System : Intelligent Air Cooling

Frame Material : Aluminum

Input Voltage : AC110-230V 50/60Hz

Waterproof Level : IP65

Viewing Distance : >3m

Supporting Signal input type : VGA, DVI, HDMI, HD_SDI

  • Product Details

TL256-123 LED Totem is the ideal medium to communicate with passerby in a dynamic and flexible way.

Application scenarios–Specially designed for applications like transportation hub, traffic intersection, crossover, park and unban community. With a large display area of 6m², these totems provide impactful viewing effect to passengers and commuters at a daily base thanks to P2.56 and P3.84 pixel pitches

Excellent Outdoor Display

LED Totem uses 123″ display based on high resolution LED module. This high brightness 7000 CD/㎡ screen has a full HD 546 x 1093 resolution and 14bits grey scale to help your images stand out and delivers clear crisp images.

When the passengers are watching the images from say 20-50m away in a car, the viewing effect will be excellent .

Advantages of the TL256-123 Totem

• Cluster control service, available for operator to manage the simultaneous broadcasting contents in LED Screen from a varietly of locations through the Internet, while sitting in the control room

• High brightness, up to 7000nits, highly visible even during the day time under the sunshine

• Ready made product easy for installation, a turnkey solution

• Able to withstand strong typhoon up to category 10 or 11

• High resolution, with P2.56 LED SMD screen on both sides

• Aluminum frame, rust proof, waterproof

• Energy-saving, low power consumption

Tecnon Smart Display LED Totem is designed to withstand high temperature of up to 65℃.

The reasons for this outstanding feature are due to the following factors:

  • Less heat generated from parts and components. Most importantly, we use larger chip of LED SMD to reach a higher brightness of 7000nits at lower current with less heat. Abundant power suppliers and receiving cards to work at high efficiency.
  • Only components that can work under high temperature are used.
  • Optimal layout of power supply and control system, more fans and large ventilation holes to push the heat out of the cabinet more efficiently.
