Pixel Pitch Strategy for Small vs. Large Indoor LED Totem

When choosing an indoor LED totem, pixel pitch is one of the most important technical factors. Pixel pitch affects how clear the images look, how far people can stand and still see details, and how much the display costs. Shopping malls, airports, corporate lobbies, and exhibition halls all use LED advertising totems, but the right pixel pitch depends on screen size and viewing distance.

Why Pixel Pitch Matters for an Indoor LED Totem

Pixel pitch refers to the distance between the centers of two adjacent LEDs. A smaller pitch means more pixels in the same area, creating sharper images. A larger pitch uses fewer LEDs, which lowers cost but reduces clarity at close range. For an LED totem, this balance is critical because the audience often stands within a few meters of the screen.

Pixel Pitch for Small Indoor LED Totem Displays

Small totems, such as 43–55 inch units in retail stores or shopping malls, usually require a fine pixel pitch. Models between P1.5 and P2.5 deliver excellent image quality for people standing just one to three meters away.

These compact displays often show product videos, menu boards, or interactive wayfinding maps. In such cases, crisp text and smooth graphics make the difference between a screen that looks premium and one that feels outdated.

Key Points for Small Totems

• Choose P1.5–P2.5 for close-up viewing.
• High brightness and anti-glare glass improve visibility in well-lit interiors.
• Touch-enabled smart LED totems benefit from finer pitch for accurate content interaction.

Pixel Pitch for Large Indoor LED Totem Installations

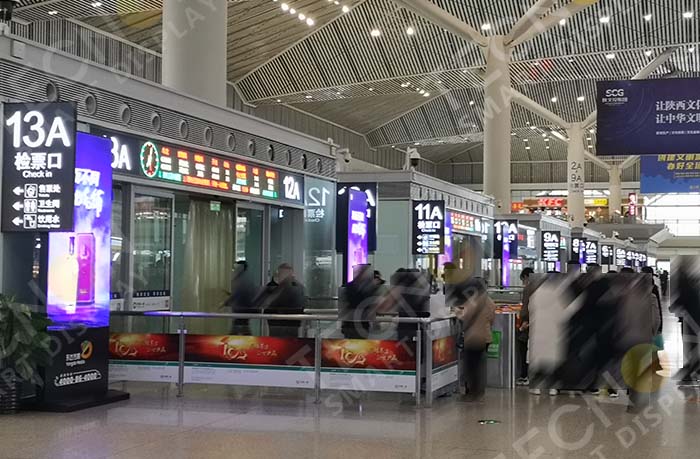

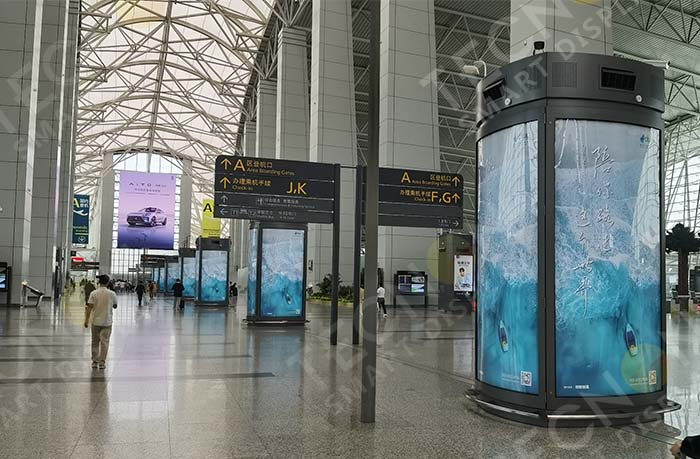

Large totems, often over two meters tall, are common in airports, convention centers, and luxury retail spaces. These displays target both nearby viewers and those across wide halls. For these applications, P2.5 to P4.0 is usually a good balance.

While fine pitch is always sharper, using something like P1.5 on a massive screen would raise costs significantly without much benefit. Viewers standing 5–10 meters away will not notice the difference between P2.5 and P1.8.

Key Points for Large Totems

• P2.5–P4.0 works best for wide-area visibility.
• Strong structural design ensures stability in public spaces.
• Double-sided LED totems can maximize exposure in high-traffic zones.

Balancing Cost and Performance

Pixel pitch directly affects pricing. Smaller pitch means more LEDs, higher energy consumption, and higher costs. Indoor advertising totem providers often guide customers toward the best compromise between budget and clarity. For malls, a mix strategy may work well: fine-pitch small totems near entrances and larger-pitch units in atriums or corridors.

Other Considerations Beyond Pixel Pitch

Pixel pitch is not the only factor, also look at:

• Brightness levels (at least 700–1000 nits for bright indoor areas)
• Cabinet design (slim, lightweight, with easy maintenance access)
• Connectivity (CMS software for real-time ad updates)
• Durability (fire-resistant materials, safe power supplies)

For smart retail environments, integrating features like interactive touch, QR codes, or NFC can enhance engagement while maintaining sharp visuals.

Conclusion: Choosing the Right LED Media Totem

An indoor LED totem with the right pixel pitch ensures both clear visuals and cost efficiency. Small totems need finer pitch for close viewing, while larger units can use slightly wider pitch without sacrificing quality. By balancing technical requirements with budget, businesses can deploy advertising LED totems that truly enhance customer experience.
