How to Prevent Water and Dust Damage in Outdoor LED Displays

Outdoor LED displays are widely used for advertising, public information, and city management. While they offer bright visuals and high durability, exposure to rain, dust, and harsh weather can seriously shorten their lifespan. Understanding how to protect these screens is essential for long-term performance.

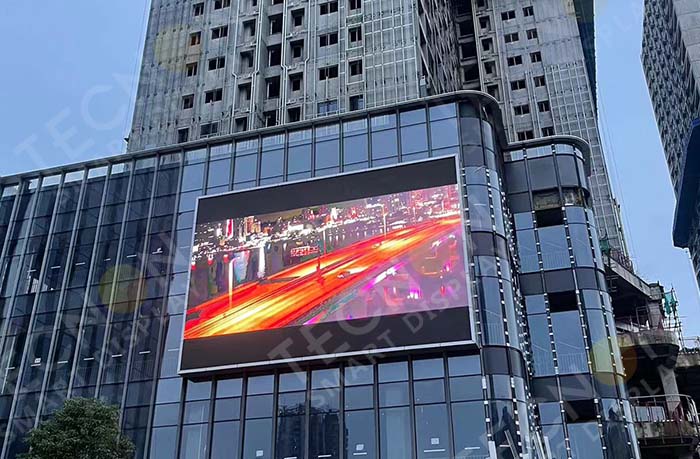

1. Choose the Right Ingress Protection (IP) Rating

The first line of defense for outdoor LED displays is their IP rating. This standard indicates how well the screen is protected against dust and water.

• IP65 or higher is recommended for most outdoor installations.
• Ensure that both the cabinet and modules meet the rating.
• Pay attention to connectors, power supplies, and control boxes—they should all be sealed.

A well-rated IP design prevents moisture ingress, dust accumulation, and electrical failures.

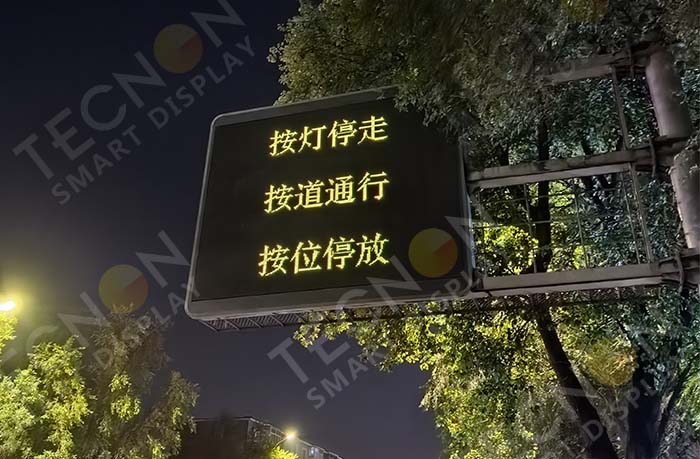

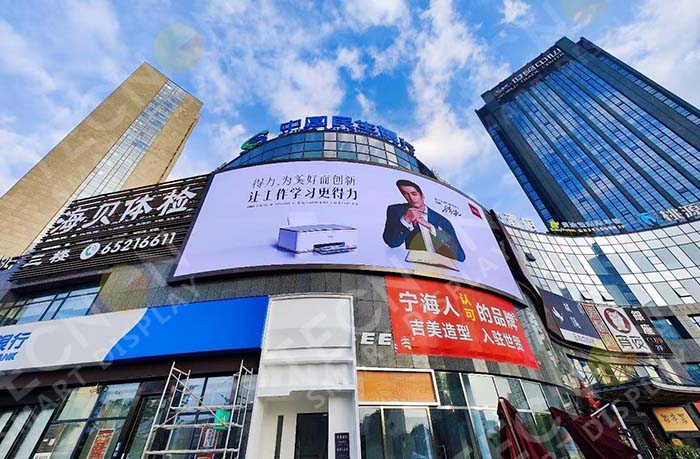

2. Proper Cabinet Design and Material

The cabinet is the body of the outdoor LED screen, and its design directly affects durability.

• Seamless full cast aluminum or die-cast magnesium aluminum cabinets improve rigidity and prevent water seepage.
• Rounded edges and sloped tops allow rainwater to drain naturally.
• Anti-corrosion coatings extend life in humid or coastal environments.

Good cabinet design also supports heat dissipation, reducing the risk of internal condensation.

3. Use Waterproof Connectors and Cables

Even the best cabinets can fail if connectors or cables allow water entry.

• Use IP67-rated connectors for all power and signal lines.
• Avoid cheap or non-certified cables.
• Seal cable entries with silicone or rubber gaskets to prevent leakage.

Proper electrical protection not only prevents short circuits but also ensures consistent brightness and signal quality.

4. Install in a Suitable Location

Placement matters for outdoor LED displays. Poor positioning increases exposure to dust, rain, and direct sunlight.

• Avoid areas prone to flooding or water accumulation.
• Install screens under slight overhangs or awnings if possible.
• Ensure enough distance from construction zones or dusty roads.

A carefully chosen location reduces maintenance frequency and protects sensitive components.

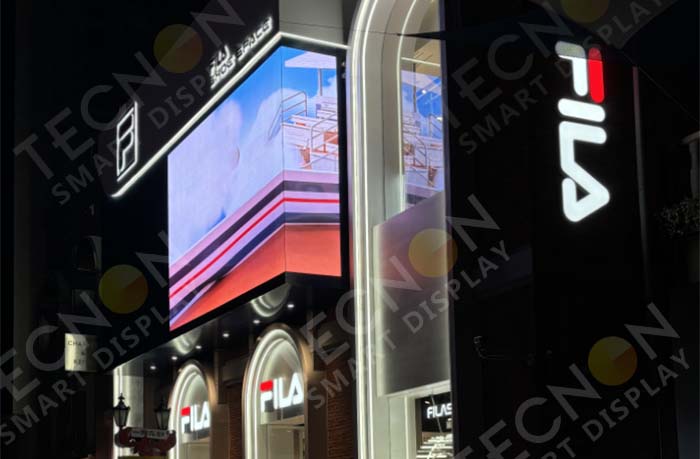

5. Apply Protective Coatings

For extra safety, many manufacturers recommend protective coatings for LEDs and modules.

• Nano-coatings or hydrophobic layers repel water and prevent dust adhesion.
• UV-resistant coatings also reduce fading and module aging from sunlight.

Protective coatings complement cabinet sealing and ensure consistent visual quality.

6. Schedule Regular Maintenance

Even with proper design, regular maintenance is essential to keep outdoor LED displays running efficiently.

• Clean the screen surface monthly with soft, non-abrasive cloths.
• Inspect for loose screws, damaged seals, or condensation inside the cabinet.
• Check power supply and signal connections for corrosion or wear.

Preventive maintenance prevents small issues from becoming costly repairs.

7. Use Smart Monitoring Systems

Modern outdoor LED displays often include monitoring systems.

• Sensors can detect humidity, temperature, and power fluctuations.
• Remote monitoring alerts operators to water ingress or excessive dust accumulation.
• Automated cleaning schedules or brightness adjustment can reduce wear.

Smart systems enhance protection and allow timely interventions before damage occurs.

Conclusion

Water and dust are major threats to outdoor LED displays, but careful planning and proactive measures can greatly extend their lifespan. Choosing the right IP rating, using strong cabinets, sealing connectors, proper placement, protective coatings, regular maintenance, and smart monitoring all contribute to a durable, high-performing display. Investing in these protections reduces downtime, lowers maintenance costs, and ensures a vibrant, reliable screen for years.
