Behind the Scenes: Designing 3D-Like Illusions on Flat LED Display Board

In recent years, the LED display board has evolved from a simple advertising tool into a platform for breathtaking visual effects. One of the most talked-about trends is the creation of 3D-like illusions on a flat surface. When designed correctly, these illusions can stop people in their tracks, making them believe the image is popping out of the screen. But how does this magic work? Let’s go behind the scenes.

The Technology Behind the Illusion

At its core, a flat LED display board is still a two-dimensional surface. The illusion of depth comes from a combination of high-resolution panels, precise content design, and smart viewing angles.

Key factors include:

• Pixel pitch: Smaller pixel pitch, like P2.5 or P3, delivers sharper images, which are essential for creating fine details in 3D effects.
• High brightness: Especially important for outdoor led screens where daylight can wash out details.
• Color accuracy: Realistic shading and highlights are crucial for depth perception.
• High refresh rate: Avoids flickering and ensures smooth animation, even in slow-motion effects.

A poorly calibrated display can ruin the illusion.

Content Creation: Where the Magic Starts

The illusion begins in the content design stage. Graphic designers and 3D artists create visuals with exaggerated perspective and lighting cues.

Common techniques include:

• Forced perspective: Stretching objects so they look correct only from a specific angle.
• Shadow and light layering: Simulating how real light would hit objects in space.
• Motion parallax: Using animation so that the image appears to move in 3D as viewers walk past.

Designers also consider frame rate and scene transitions. Smooth changes between scenes help maintain immersion, while abrupt changes can break the illusion.

When displayed on a curved or corner-mounted LED display board, these designs feel even more lifelike.

Installation Matters

Even the best content can fail if the installation isn’t precise. For example, corner screens or L-shaped setups are popular for 3D illusions because they allow designers to split the content across two surfaces seamlessly. If the alignment between panels is off by even a few millimeters, the illusion breaks.

Viewing distance also plays a role. Designers calculate the optimal spot for passersby to experience the full effect. This is why you often see these 3D-like LED billboard projects installed in busy pedestrian zones.

The mounting structure must be rigid enough to keep panels perfectly aligned, especially for outdoor installations exposed to wind and temperature changes.

The Role of Calibration and Maintenance

Over time, LEDs age and brightness levels can change between panels. This can make shadows appear uneven or highlights look flat. Regular calibration keeps colors and brightness uniform across the whole LED wall screen. Without it, the 3D effect loses its impact.

Professional maintenance teams use specialized software and cameras to detect inconsistencies and adjust each panel. This ensures that your investment continues to perform for years.

Pushing the Boundaries: Adding Interactivity

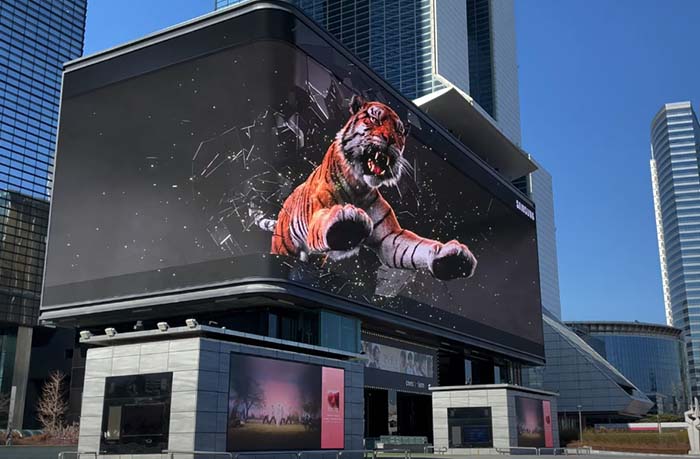

Some brands are experimenting with interactive LED screen where motion sensors detect passersby and adjust the content accordingly. Imagine a 3D tiger turning its head to look directly at you as you walk past. This level of engagement makes the experience even more memorable and shareable on social media.

Real-World Examples

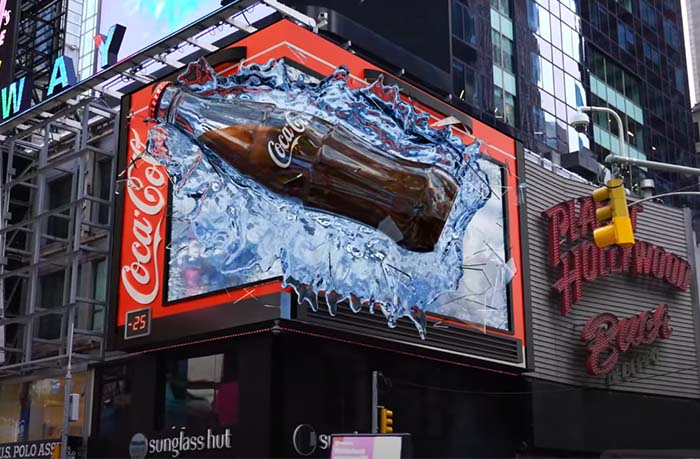

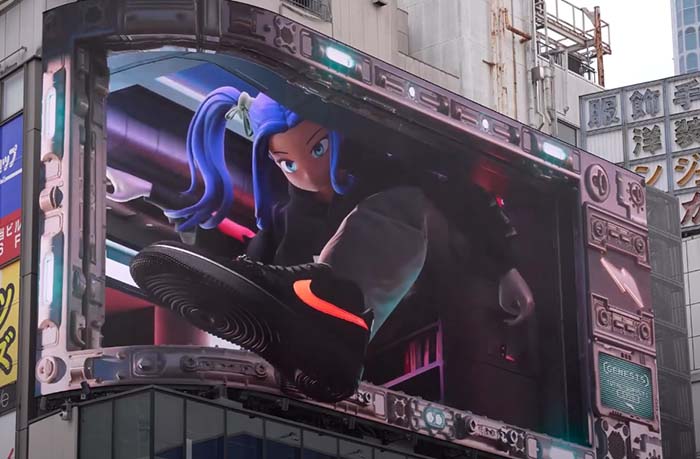

Some of the most impressive 3D illusions have been seen in city centers, shopping malls, and stadiums:

Why Brands Love 3D Illusions

Beyond visual wow-factor, 3D illusions grab attention for longer periods. In advertising, dwell time matters. When people stop to watch, the brand message has more time to sink in. For premium brands, these projects also signal innovation and creativity.

Another big reason is return on investment. While the upfront cost is higher than standard flat content, viral campaigns often bring massive organic exposure—sometimes worth more than paid ads.

Conclusion

Designing 3D-like illusions on a flat LED display board requires the perfect blend of high-quality hardware, smart content creation, precise installation, and ongoing maintenance. When done well, it can transform an ordinary display into an unforgettable visual experience.
